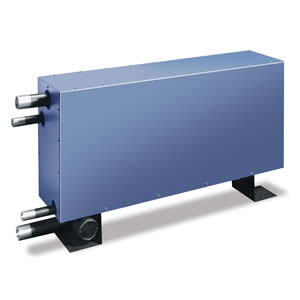

AC Series Desuperheater

Reduce or eliminate wasted energy with the AC Series DesuperheaterHEAT RECOVERY UNIT FOR DOMESTIC HOT WATER FROM AIR CONDITIONING AND REFRIGERATION SYSTEMS UP TO 200 TONS

AC Series Mechanically Cleanable Commercial Desuperheaters recycle rejected heat from your air conditioning or refrigeration system and use it to heat water or other fluids. At the same time, desuperheating lowers refrigerant temperature and pressure, reducing energy input to the compressor. You save by reducing or eliminating the energy required for water heating while increasing the efficiency of the air conditioning/refrigeration system.



  • Heats potable water up to 140 ºF using waste heat
  • Typical Payback Period of Two Years or Less
  • Reduces A/C Operating Costs 5% to 10%
  • Mechanically Cleanable Counterflow Design
  • Compact and Ready to Install
  • Works with All Major Manufacturers' Systems




The Doucette AC Series™ heat recovery unit delivers substantial energy savings by heating potable water by recovering waste heat from refrigeration, air conditioning and heat pump systems. The AC Series™ can effectively heat water up to 140ºF, and is ideal for systems ranging from 5 - 200 HP using reciprocating, scroll and screw compressors. The unit arrives as a standard factory package that is ready to install, and can be applied to both air- and water-cooled systems.

View AC Series brochure

View AC Series IOM

Heat Recovery Prioritization Guide
How to find your prime target for heat recovery. Download PDF Guide Now.
Download piping schematic

Need Help Deciding What You Need?

We would be happy to have a conversation with you about what fits your specific needs.

Start a Conversation Now

Or call Adam at [email protected]

Click Item Number to View Full Product Sheets
Item # TR # Circuits Cleanability Refrig. Conn. Water. Conn. Length Width Height Weight List Price
AC 5(C) 5 tons 1 Mechanical 1 1/8" OD/ID 5/8" OD 35 " 2-3/4 " 25-7/16 " 46 lbs $3,265.00
AC 7 1/2(C) 7 1/2 tons 1 Mechanical 1 1/8" OD/ID 5/8" OD 42 " 2-3/4 " 25-7/16 " 65 lbs $3,535.00
AC 10(C) 10 tons 1 Mechanical 1 1/8" OD/ID 5/8" OD 49 " 2-3/4 " 25-7/16 " 80 lbs $4,260.00
AC 15(C) 15 tons 1 Mechanical 1 3/8" OD 7/8" OD 43-3/4 " 4-3/4 " 25-13/16 " 190 lbs $6,850.00
AC 20(C) 20 tons 1 Mechanical 1 5/8" OD 7/8" OD 51 " 4-3/4 " 25-13/16 " 210 lbs $8,000.00
AC 25(C) 25 tons 1 Mechanical 1 5/8" OD 1 1/8" OD 43-3/4 " 6-3/4 " 25-13/16 " 250 lbs $9,410.00
AC 30(C) 30 tons 1 Mechanical 2 1/8" OD 1 1/8" OD 51 " 6-3/4 " 25-13/16 " 320 lbs $10,600.00
AC 40(C) 40 tons 1 Mechanical 2 1/8" OD 1 3/8" OD 51 " 8-3/4 " 25-13/16 " 400 lbs $12,900.00
AC 50(C) 50 tons 1 Mechanical 2 1/8" OD 1 3/8" OD 51 " 10-3/4 " 25-13/16 " 440 lbs $16,020.00
AC 60(C) 60 tons 1 Mechanical 2 5/8" OD 1 5/8" OD 52 " 12-3/4 " 25-13/16 " 480 lbs $19,110.00
AC 70(C) 70 tons 1 Mechanical 2 5/8" OD 2 1/8" OD 52 " 14-3/4 " 25-13/16 " 560 lbs $21,410.00
AC 80(C) 80 tons 1 Mechanical 2 5/8" OD 2 1/8" OD 52 " 16-3/4 " 25-13/16 " 600 lbs $23,840.00
AC 90(C) 90 tons 1 Mechanical 2 5/8" OD 2 1/8" OD 52 " 18-3/4 " 25-13/16 " 660 lbs $26,530.00
AC 100(C) 100 tons 1 Mechanical 3 1/8" OD 2 1/8" OD 52 " 20-3/4 " 25-13/16 " 720 lbs $29,190.00
AC 120(C) 120 tons 1 Mechanical 3 1/8" OD 2 1/8" OD 52 " 24 3/4 " 25-13/16 " 850 lbs $34,485.00
AC 140(C) 140 tons 1 Mechanical 3 5/8" OD 2 1/8" OD 52 " 28 3/4 " 26-13/16 " 965 lbs $39,410.00
AC 160(C) 160 tons 1 Mechanical 3 5/8" OD 2-5/8" OD 52 1/2 " 32 3/4 " 26-13/16 " 1080 lbs $43,915.00
AC 180(C) 180 tons 1 Mechanical 3 5/8" OD 2-5/8" OD 52 1/2 " 36 3/4 " 26-13/16 " 1230 lbs $48,890.00
AC 200(C) 200 tons 1 Mechanical 3 5/8" OD 2-5/8" OD 52 1/2 " 40 3/4 " 26-13/16 " 1380 lbs $54,985.00
AC 15-2(C) 15 tons 2 Mechanical 1 1/8" OD 7/8" OD 43-3/4 " 6-3/4 " 25-13/16 " 200 lbs $6,910.00
AC 20-2(C) 20 tons 2 Mechanical 1 1/8" OD 7/8" OD 51 " 6-3/4 " 25-13/16 " 235 lbs $7,610.00
AC 30-2(C) 30 tons 2 Mechanical 1 3/8" OD 1 1/8" OD 43-3/4 " 10-3/4 " 25-13/16 " 340 lbs $12,260.00
AC 40-2(C) 40 tons 2 Mechanical 1 5/8" OD 1 3/8" OD 51 " 10-3/4 " 25-13/16 " 420 lbs $13,450.00
AC 60-2(C) 60 tons 2 Mechanical 2 1/8" OD 1 5/8" OD 52 " 14-3/4 " 25-13/16 " 500 lbs $20,420.00
AC 80-2(C) 80 tons 2 Mechanical 2 1/8" OD 2 1/8" OD 52 " 18-3/4 " 25-13/16 " 620 lbs $24,940.00
AC 100-2(C) 100 tons 2 Mechanical 2 1/8" OD 2 1/8" OD 52 " 22-3/4 " 25-13/16 " 750 lbs $29,650.00
AC 120-2(C) 120 tons 2 Mechanical 2 5/8" OD 2 1/8" OD 52 " 26-3/4 " 25-13/16 " 880 lbs $34,630.00
AC 140-2(C) 140 tons 2 Mechanical 2 5/8" OD 2 1/8" OD 52 " 30 3/4 " 25-13/16 " 980 lbs $40,100.00
AC 160-2(C) 160 tons 2 Mechanical 2 5/8" OD 2-5/8" OD 52 1/2 " 34 3/4 " 25-13/16 " 1100 lbs $44,860.00
AC 180-2(C) 180 tons 2 Mechanical 2 5/8" OD 2-5/8" OD 52 1/2 " 38 3/4 " 25-13/16 " 1250 lbs $50,030.00
AC 200-2(C) 200 tons 2 Mechanical 3 1/8" OD 2-5/8" OD 52 1/2 " 42 3/4 " 25-13/16 " 1400 lbs $56,940.00
