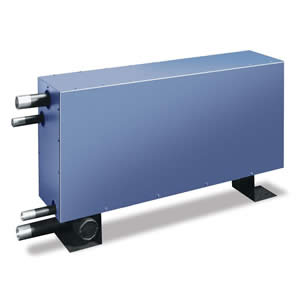

DC Series Desuperheater

Recycle wasted heat to heat water and other liquidsHEAT RECOVERY UNIT FOR DOMESTIC HOT WATER FROM AIR CONDITIONING AND REFRIGERATION SYSTEMS UP TO 100 TONS

DC Series Chemically Cleanable Commercial Desuperheaters recycle rejected heat from your air conditioning or refrigeration system and use it to heat water or other fluids. At the same time, desuperheating lowers refrigerant temperature and pressure, reducing energy input to the compressor. You save by reducing or eliminating the energy required for water heating while increasing the efficiency of the air conditioning/refrigeration system.

Heat Recovery Prioritization Guide
How to find your prime target for heat recovery. Download PDF Guide Now.
Download piping schematic

Need Help Deciding What You Need?

We would be happy to have a conversation with you about what fits your specific needs.

Start a Conversation Now

Or call John at 800.445.7511

Click Item Number to View Full Product Sheets
Item # TR # Circuits Cleanability Refrig. Conn. Water. Conn. Length Weight Height Weight List Price
    DC 5
    5 tons 1 Chemical 1-1/8" OD/ID 5/8" OD 40-1/8 " 2-7/8 " 22-1/2 " 43 lbs $1,025.00
      DC 10
      10 tons 1 Chemical 1-1/8" OD/ID 5/8" OD 49-1/8 " 2-7/8 " 22-1/2 " 70 lbs $1,150.00
        DC 20
        20 tons 1 Chemical 1-5/8" OD 7/8" OD 50-1/8 " 4-3/4 " 23-3/16 " 190 lbs $2,610.00
          DC 30
          30 tons 1 Chemical 2-1/8" OD 1 1/8" OD 50-1/8 " 6-3/4 " 23-3/16 " 290 lbs $3,560.00
            DC 40
            40 tons 1 Chemical 2-1/8" OD 1 3/8" OD 50-1/8 " 8-3/4 " 23-3/16 " 360 lbs $4,570.00
              DC 50
              50 tons 1 Chemical 2-1/8" OD 1 3/8" OD 50-1/8 " 10-3/4 " 23-3/16 " 390 lbs $5,550.00
                DC 60
                60 tons 1 Chemical 2-5/8" OD 1-5/8" OD 50-1/8 " 12-3/4 " 23-3/16 " 420 lbs $6,460.00
                  DC 70
                  75 tons 1 Chemical 2-5/8" OD 2-1/8" OD 51-1/8 " 14-3/4 " 23-3/16 " 490 lbs $7,350.00
                    DC 80
                    80 tons 1 Chemical 2-5/8" OD 2-1/8" OD 51-1/8 " 16-3/4 " 23-3/16 " 520 lbs $8,210.00
                      DC 100
                      100 tons 1 Chemical 3-1/8" OD 2-1/8" OD 51-1/8 " 20-3/4 " 23-3/16 " 620 lbs $10,175.00
                        DC 20D
                        20 tons 2 Chemical 1-1/8" OD/ID 7/8" OD 50-1/8 " 6-3/4 " 22-5/16 " 210 lbs $3,630.00
                          DC 40D
                          40 tons 2 Chemical 2 x 1-5/8" OD 1-3/8" OD 50-1/8 " 10-3/4 " 22-5/16 " 210 lbs $5,940.00
                            DC 60D
                            60 tons 2 Chemical 2 x 2-1/8" OD 1-5/8" OD 50-1/8 " 14-3/4 " 23-3/16 " 440 lbs $7,950.00
                              DC 80D
                              80 tons 2 Chemical 2 x 2-1/8" OD 2 1/8" OD 51-1/8 " 18-3/4 " 23-3/16 " 540 lbs $10,150.00
                                DC 100D
                                100 tons 2 Chemical 2 x 2-1/8" OD 2 1/8" OD 51-1/8 " 22-3/4 " 23-3/16 " 650 lbs $11,810.00
