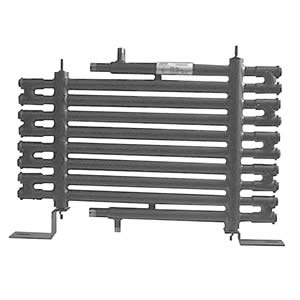

Tube-in-Tube Condensers

1/3 to 40 tons

Freshwater and Marine


Doucette CounterFlow Condensers are mechanically cleanable with "fail safe" proven design. These condensers offer OEM’s, contractors and end-users the advantages of high performance and compact packaging.

Need Help Deciding What You Need?

We would be happy to have a conversation with you about what fits your specific needs.

Start a Conversation Now

Or call John at 800.445.7511

Click Item Number to View Full Product Sheets

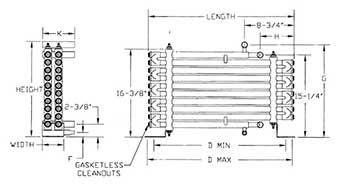

Item # HP Application Refrig. In Refrig. Out Water Conn. Width Length Height Weight List Price
    FW 1/3
    1/3 Fresh Water 3/8 " 3/8 " 5/8 " 2 " 18 " 8-7/8 " 8 lbs $370.00
      FW 1/2
      1/2 Fresh Water 3/8 " 3/8 " 5/8 " 2 " 22 " 8-7/8 " 9 lbs $385.00
        FW 3/4
        3/4 Fresh Water 3/8 " 3/8 " 5/8 " 2 " 22 " 11-3/4 " 12 lbs $515.00
          FW 1
          1 Fresh Water 1/2 " 3/8 " 5/8 " 2 " 22 " 14-9/16 " 16 lbs $660.00
            FW 1 1/2
            1 1/2 Fresh Water 1/2 " 3/8 " 5/8 " 2 " 23 " 17-7/16 " 18 lbs $790.00
              FW 2
              2 Fresh Water 1/2 " 1/2 " 7/8 " 2 " 22 " 17-7/16 " 30 lbs $780.00
                FW 2 1/2
                2 1/2 Fresh Water 5/8 " 1/2 " 7/8 " 2 " 26 " 17-7/16 " 33 lbs $895.00
                  FW 3
                  3 Fresh Water 5/8 " 1/2 " 7/8 " 2 " 30 " 17-7/16 " 36 lbs $870.00
                    FW 3 1/3
                    3 1/3 Fresh Water 5/8 " 1/2 " 7/8 " 2 " 32 5/8 " 17-7/16 " 37 lbs $935.00
                      FW 3 3/4
                      3 3/4 Fresh Water 5/8 " 5/8 " 7/8 " 2 " 36 " 17-7/16 " 40 lbs $995.00
                        FW 4
                        4 Fresh Water 5/8 " 5/8 " 7/8 " 2 " 38 " 17-7/16 " 42 lbs $1,055.00
                          FW 4M2
                          4 Fresh Water 1 1/8 " 5/8 " 1 1/8 " 4 " 22 " 17-11/16 " 62 lbs $1,835.00
                            FW 5M2 1/2
                            5 Fresh Water 1 1/8 " 5/8 " 1 1/8 " 4 " 26 " 17-11/16 " 100 lbs $1,850.00
                              FW 6M3
                              6 Fresh Water 1 1/8 " 7/8 " 1 1/8 " 4 " 30 " 17-11/16 " 100 lbs $2,025.00
                                FW 7 1/2M2 1/2
                                7 1/2 Fresh Water 1 1/8 " 7/8 " 1 3/8 " 6 " 26 " 17-11/16 " 130 lbs $2,670.00
                                  FW 7 1/2M3 3/4
                                  7 1/2 Fresh Water 1 3/8 " 7/8 " 1 3/8 " 4 " 36 " 17-15/16 " 110 lbs $2,080.00
                                    FW 8M4
                                    8 Fresh Water 1 1/8 " 7/8 " 1 3/8 " 4 " 38 " 17-11/16 " 110 lbs $2,115.00
                                      FW 9M3
                                      9 Fresh Water 1 1/8 " 7/8 " 1 5/8 " 4 " 30 " 17-11/16 " 135 lbs $2,900.00
                                        FW 10M2 1/2
                                        10 Fresh Water 1 3/8 " 1 1/8 " 2 1/8 " 8 " 26 " 17-15/16 " 150 lbs $3,520.00
                                          FW 10M3 1/3
                                          10 Fresh Water 1 1/8 " 7/8 " 1 5/8 " 6 " 32 5/8 " 17-11/16 " 140 lbs $2,810.00
                                            FW 12M4
                                            12 Fresh Water 1 1/8 " 7/8 " 1 5/8 " 6 " 38 " 17-11/16 " 150 lbs $3,030.00
                                              FW 15M3 3/4
                                              15 Fresh Water 1 3/8 " 1 1/8 " 2 1/8 " 8 " 36 " 17-15/16 " 200 lbs $3,935.00
                                                FW 16M4
                                                16 Fresh Water 1 3/8 " 1 1/8 " 2 1/8 " 8 " 38 " 17-15/16 " 200 lbs $4,080.00
                                                  FW 20M4
                                                  20 Fresh Water 1 3/8 " 1 1/8 " 2 1/8 " 10 " 38 " 19-3/16 " 250 lbs $4,910.00
                                                    FW 26 1/4M3 3/4
                                                    26 1/4 Fresh Water 2 5/8 " 1 5/8 " 2 5/8 " 14 " 36 " 19-3/16 " 350 lbs $6,865.00
                                                      FW 30M3 3/4
                                                      30 Fresh Water 2 5/8 " 1 5/8 " 2 5/8 " 16 " 36 " 19-3/16 " 390 lbs $7,540.00
                                                        FW 36M4
                                                        36 Fresh Water 2 5/8 " 1 5/8 " 2 5/8 " 16 " 36 " 19-3/16 " 450 lbs $8,570.00
                                                          FW 40M4
                                                          40 Fresh Water 2 5/8 " 1 5/8 " 2 5/8 " 20 " 38 " 19-3/16 " 500 lbs $9,430.00
                                                            SW 1/3
                                                            1/3 Marine 3/8 " 3/8 " 5/8 " 2 " 18 " 8-7/8 " 8 lbs $500.00
                                                              SW 1/2
                                                              1/2 Marine 3/8 " 3/8 " 5/8 " 2 " 22 " 8-7/8 " 9 lbs $510.00
                                                                SW 3/4
                                                                3/4 Marine 3/8 " 3/8 " 5/8 " 2 " 22 " 11-3/4 " 12 lbs $710.00
                                                                  SW 1
                                                                  1 Marine 1/2 " 3/8 " 5/8 " 2 " 22 " 14-9/16 " 16 lbs $885.00
                                                                    SW 1 1/2
                                                                    1 1/2 Marine 1/2 " 3/8 " 5/8 " 2 " 23 " 17-7/16 " 18 lbs $1,080.00
                                                                      SW 2
                                                                      2 Marine 1/2 " 1/2 " 7/8 " 2 " 22 " 17-7/16 " 30 lbs $1,330.00
                                                                        SW 2 1/2
                                                                        2 1/2 Marine 5/8 " 1/2 " 7/8 " 2 " 26 " 17-7/16 " 33 lbs $1,435.00
                                                                          SW 3
                                                                          3 Marine 5/8 " 1/2 " 7/8 " 2 " 30 " 17-7/16 " 36 lbs $1,645.00
                                                                            SW 3 1/3
                                                                            3 1/3 Marine 5/8 " 1/2 " 7/8 " 2 " 32 5/8 " 17-7/16 " 37 lbs $1,665.00
                                                                              SW 3 3/4
                                                                              3 3/4 Marine 5/8 " 5/8 " 7/8 " 2 " 36 " 17-7/16 " 40 lbs $1,740.00
                                                                                SW 4
                                                                                4 Marine 5/8 " 5/8 " 7/8 " 2 " 38 " 17-7/16 " 42 lbs $1,935.00
                                                                                  SW 4M2
                                                                                  4 Marine 1 1/8 " 5/8 " 1 1/8 " 4 " 22 " 17-11/16 " 62 lbs $2,750.00
                                                                                    SW 5M2 1/2
                                                                                    5 Marine 1 1/8 " 5/8 " 1 1/8 " 4 " 26 " 17-11/16 " 100 lbs $2,780.00
                                                                                      SW 6M3
                                                                                      6 Marine 1 1/8 " 7/8 " 1 1/8 " 4 " 30 " 17-11/16 " 100 lbs $2,940.00
                                                                                        SW 7 1/2M2 1/2
                                                                                        7 1/2 Marine 1 1/8 " 7/8 " 1 3/8 " 6 " 26 " 17-11/16 " 130 lbs $4,100.00
                                                                                          SW 7 1/2M3 3/4
                                                                                          7 1/2 Marine 1 3/8 " 7/8 " 1 3/8 " 4 " 36 " 17-15/16 " 110 lbs $3,340.00
                                                                                            SW 8M4
                                                                                            8 Marine 1 1/8 " 7/8 " 1 3/8 " 4 " 38 " 17-11/16 " 110 lbs $3,620.00
                                                                                              SW 9M3
                                                                                              9 Marine 1 1/8 " 7/8 " 1 5/8 " 4 " 30 " 17-11/16 " 135 lbs $4,260.00
                                                                                                SW 10M2 1/2
                                                                                                10 Marine 1 3/8 " 1 1/8 " 2" FPT 8 " 26 " 17-15/16 " 150 lbs $5,515.00
                                                                                                  SW 10M3 1/3
                                                                                                  10 Marine 1 1/8 " 7/8 " 1 5/8 " 6 " 32 5/8 " 17-11/16 " 140 lbs $4,880.00
                                                                                                    SW 12M4
                                                                                                    12 Marine 1 1/8 " 7/8 " 1 5/8 " 6 " 38 " 17-11/16 " 150 lbs $5,335.00
                                                                                                      SW 15M3 3/4
                                                                                                      15 Marine 1 3/8 " 1 1/8 " 2" FPT 8 " 36 " 17-15/16 " 200 lbs $6,580.00
                                                                                                        SW 16M4
                                                                                                        16 Marine 1 3/8 " 1 1/8 " 2" FPT 10 " 38 " 17-15/16 " 200 lbs $6,620.00
                                                                                                          SW 20M4
                                                                                                          20 Marine 1 3/8 " 1 1/8 " 2" FPT 10 " 38 " 19-3/16 " 250 lbs $8,180.00
                                                                                                            SW 26 1/4M3 3/4
                                                                                                            26 1/4 Marine 2 5/8 " 1 5/8 " 2" FPT 14 " 36 " 19-3/16 " 350 lbs $10,755.00
                                                                                                              SW 30M3 3/4
                                                                                                              30 Marine 2 5/8 " 1 5/8 " 2" FPT 16 " 36 " 19-3/16 " 390 lbs $13,220.00
                                                                                                                SW 36M4
                                                                                                                36 Marine 2 5/8 " 1 5/8 " 2" FPT 18 " 38 " 19-3/16 " 450 lbs $16,210.00
                                                                                                                  SW 40M4
                                                                                                                  40 Marine 2 5/8 " 1 5/8 " 2" FPT 20 " 38 " 19-3/16 " 500 lbs $17,710.00
